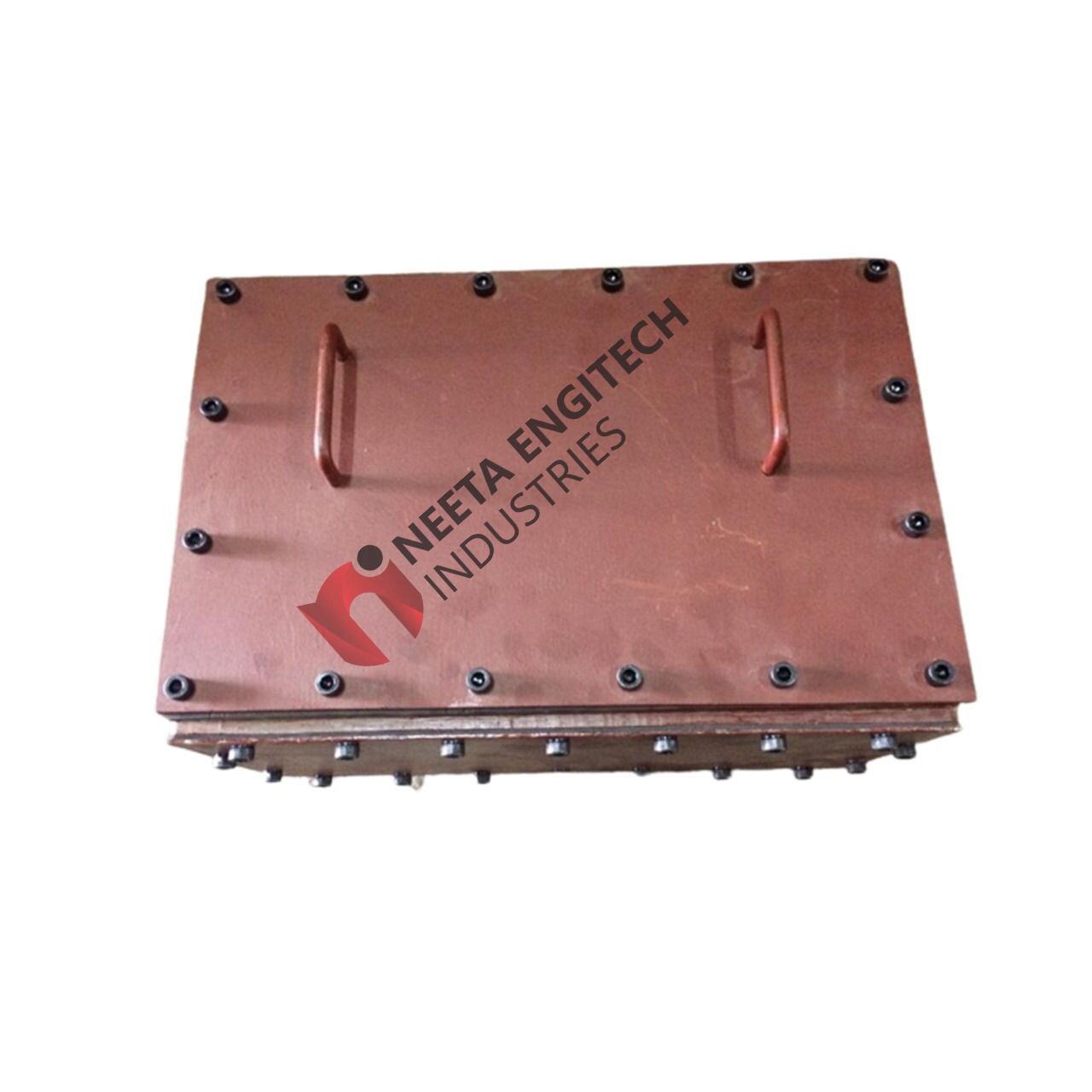

STAR POINT TERMINAL BOX
We are manufacturer of wild range of Star Point terminal box. the terminal box fabricated Mild steel casing welded to a heavy gauge back and front plate. The outer Mild steel case encloses an inner fabricated Mild steel shell and mild steel barriers extending from top to bottom of the inner shell. The terminal box has three phase compartments. Terminal boxes eliminate phase to phase faults. In the event of a fault developing between phase and earth in one of the copper road and insulator, the rapid buildup of pressure will cause the enclosure to fracture across the rear wall, thus releasing hot gases and flame into the Mild steel phase segregating compartment.
Specification:
- IP 55
- Water/Dust protection.
- Internal pressure relief.
- Supply cable entry from any direction.
- Adaptor required if side entry.
- Neutral (star point) version available
- Phase to phase equipment cable per phase only.
- Capacity :3.3kv 250 MVA with 400Amps FL Current
- Capacity : 6.6kv 500 MVA with 360Amps F Current
- Capacity : 11kv 500 MVA with 210Amps FL Current
Complete range of spares and insulation, rubber components. Our products esp. Insulators, Rubber Gaskets are highly acclaimed and widely used in Motors by all OEM’s.
